The vacuum motor or flame eater 'Nick' is mostly made of brass. The flywheels are made of cast steel. 'Nick' is mounted on a varnished wooden panel. The crankshaft has ball bearings. It runs at around 200-400 rpm. The burner is height adjustable so that the speed can be regulated using the handwheel. The flame eater needs a few minutes to reach operating temperature. It can then be started with a gentle push on the flywheel. Once it is in operation, it runs for many minutes with a beautiful sound. All milled parts have already been machined and some still need to be drilled. The materials, screws, ball bearings and spring elements required to build the flame eater and burner are included in the kit. To build the flame eater you need a small lathe, a small drill, as well as a gas burner for soldering larger parts and a burner for brazing small parts. Otherwise, hand tools, which should be in every “steam engine workshop”, are necessary (tap M2, M3, M8x0.75, cutting die M3 and M8x0.75, reamer 3H7, 4H7, 6H7, files, drill set). Would you like to see in advance what work is still being carried out? Then take a look at the construction report from the flame eater “Nick” in our Bengs model building magazine. Here you will find many pictures and small explanatory texts about what needs to be taken into account during construction. This construction report can certainly provide you with additional support during the construction phase.Dimensions of the “Nick” flame eater with base plate Length: 170mm Width: 100mm Height: 110mm Flywheel D.: 80mm Piston D.: 16mm Stroke: 26mm The Flame Eater Nick material kit includes: Finished milled parts Raw material for the turned parts Two 80mm flywheels made of cast steel Milled wooden base plate made of oak All required screws, nuts, ball bearings and spring elements Construction plan flame eater drawings (9 sheets) and construction instructions (6 sheets) Construction plan burner drawings (3 sheets) and construction instructions (2 sheets) Kit for the burner, height adjustable If you ever need a spare part, you are of course welcome to order it from us.

The vacuum motor or flame licker 'The large Nick' mainly consists of brass. It possesses water-cooling with an evaporator container. The flywheels are made of cast iron. The large Nick is mounted onto a Jatoba wood plate. The crankshaft and the slide shaft have ball bearings. It runs at approx. 200-300 rpm. The burner is adjustable in height, so that the speed can be regulated over the handhweel. In addition, the distance from the flame to the cylinder head can be adjusted over a handwheel. All milled parts have already been processed and must be partially drilled yet. All rotating parts are yet to be filmed in its raw state and need. The construction of the fire-eater and the burner necessary materials, screws, ball bearings and spring elements are included in the kit. All necessary materials for the construction of fire-eater (screws and spring elements) are included in the kit. The construction of the fire-eater, a medium sized lathe (minimum quantum D is x 250 400), a drill and a gas burner required for soldering larger parts and a torch for brazing small parts. Otherwise, are still hand tools, which should be in every "steam engine workshop" (Taps M2, M3, M4, M8x0, 75 cutting dies M3, M4, M8x0, 75 Reamer 3H7, 6H7, 10H7, files, drill bit) needed.   If you have any tools for making the flame-eater, "The Big Nick" need, simply click the required items and you will be automatically redirected.   Dimensions flame eater The big Nick Length: 260mm Width: 150mm Height: 240mm Flywheel D.: 140mm D. Piston: 26mm Stroke: 46mm The delivery volume consists of: Finish-machined milled Raw material for the rotating parts Cast iron flywheels Milled-wood base All necessary screws, nuts, ball bearings and spring elements Blueprint flamelickers Drawings (8 sheets) and instructions (6 sheets) Burner blueprint drawings (3 sheets) and instructions (2 sheets) Large burner kit 2-axis adjustable

The Flame Eater Jarne has a crankshaft mounted on the cylinder. The force of the piston is transmitted via a beam to the crankshaft above. It has a wet cylinder sleeve and can be cooled with water. This flame eater was based on a flame eater by Armin de Vries, who offered a set of cast parts some time ago. The flywheels of this model have a diameter of 140 mm. The cylinder's cooling jacket is made of aluminum and has a diameter of 60 mm. The cylinder sleeve is already finished on the inside. It just needs to be edited on the outside. The piston material for this model is gray cast iron round material. Graphite is used for the slider in this flame eater model. Most of the parts used in the model flame eater are made of brass. An oak base plate is also included.  To build the material kit for the flame eater "Jarne", a medium lathe is required. You will also need a small pillar drill and a torch for soft soldering. Furthermore, hand tools (tap M2, M3, M4, M8x0.75 / cutting die M2, M3, M4, M8x0.75, / reamers 3H7, 4H7, 6H7, / files, drill set) are also necessary.Dimensions Flame Eater “Jarne”: Length: 260mm Width: 120mm Height: 260mm Flywheel D.: 140mm Piston D.: 30mm Stroke: 58mm Included in the delivery are: Finished milled parts Raw material for the turned parts Graphite round material for the slider 140mm cast steel flywheels Wooden base plate made of oak All required screws, nuts, ball bearings and spring elements Construction plan flame eater drawings (8 sheets) and construction instructions (6 sheets) Further information with lots of pictures and explanatory texts about building this flame eater can be found in our model building magazine. This means you can find out about the construction in advance as well as find suggestions and support during the construction phase. Jarne construction report in Bengs Modellbau magazine

The combustion engine “Little Karl” is, as the name suggests, the small version of our popular combustion engine Karl. With this kit, particular emphasis was placed on the fact that it can be made in a small hobby workshop with a small lathe. Thanks to its simple construction, this model is also suitable for beginners in technical model making. In contrast to the large stationary engine Karl, this model does not have an ignition with a spark plug but rather a Glow plug. This circumstance makes both the construction of the model and its operation easier because the ignition timing does not need to be adjusted. Of course, this model also has speed control via Hit & Miss control. The combustion engine “Little Karl” with glow plug has a stable frame made of milled brass parts. The crankshaft is guided in two gunmetal plain bearings. The cylinder sleeve consists of a precision brass tube that no longer needs to be processed inside. An aluminum piston runs in the tube. The cylinder head and cooling jacket are also made of aluminum. Most other components such as the carburettor, tank, rocker arms and controls are made of brass. The entire motor is mounted on an aluminum base which in turn rests on two oak wooden runners. The two 80mm flywheels and the pulley are made of cast steel using the lost wax casting process and are of excellent quality. All materials required to build the combustion engine "Little Karl", such as screws, springs and ignition parts, are included in the kit. All milled parts are prepared so that they only need to be deburred and possibly drilled. All turned parts are included in the kit unmachined and must be manufactured according to the drawing. To build the Hit & Miss Motors requires a small lathe, a drill and a gas burner for soft soldering. The following hand tool is also required (tap M2, M3, M4, tap UNEF1/ 4 x 32, Dies M4, M6, reamer 3H7, 5H7, 6H7, 8H7) files and a drill set are necessary. All you need to wire the glow plug is a pair of side cutters, wire strippers and a soldering iron. You also need a baby battery with at least 3000 mAh. The battery is not included in the kit but can be ordered from us. If you would like to find out in advance which work steps you have to carry out when manufacturing this combustion engine, take a look at our Bengs model building magazine Construction report of the combustion engine "The Little Karl" with glow plug. On this page you can see the illustrated report on how the stationary motor material set is processed. Dimensions of the model combustion engine 'Karl': Height with wooden runners: 135mm Length overall: 200mm Width overall: 120mm Length without runners: 190mm Piston diameter: 20mm Flywheel D.: 80mm Speed: 600-1500 rpm Weight of the finished model: 1.8kg Hit & Miss Regulation With the hit & With this control you can limit the maximum speed of the engine. If the engine has reached too high a speed, a slide prevents the exhaust valve from closing. This means the engine runs freely. No compression can occur in the cylinder chamber and the engine neither sucks in fresh gasoline nor ignites the air-fuel mixture. The Hit & Miss regulation is called suspension regulation in German. The misfire control was mainly used in the USA by various companies for internal combustion engines from 1890 to 1940. The scope of delivery includes: finished CNC milled milled parts Raw material for the turned partsRough casting part for the flywheels 80mm Raw casting part for the belt wheel Two wooden runners made of oak All required screws, nuts, gears and sealing rings Drawings of the combustion engine "Little Karl" (24 sheets) and construction instructions (11 sheets) Switch, battery compartment, cable and glow plug (Battery Baby battery not included is available from us

Stationary engine with hit and mismatch were used from 1890 to 1940 for a variety of tasks. The design with lying cylinder, open crankshaft and two flywheels was one of the most popular. These engines have been used in many farms to drive threshing machines, pumps, or grain grinders. But also in many craft and industrial engines, these combustion engines have been used in various sizes. Particularly in the American area, the speed control system has been widespread through a misfire control. The open crankshaft and the open rocker arms allow a very good view of the workings in an internal combustion engine. With the material kit for the internal combustion engine "Karl" you can build a fully functional combustion engine. The material kit contains all required parts including the ignition. The engine has a functioning speed control, which is controlled by a hit and miss misfire control. The ignition is concealed in the base of the machine, as well as in the wooden box behind the machine base. Dimensions of the model internal combustion engine 'Karl': Height with wooden runners: 192mm Overall length: 440mm Width overall: 180mm Length without skids and wooden box: 283mm Dia. Piston: 25mm Flywheel D .: 140mm Speed: 600-1500 rpm The machine foot of the station motor is a heavy gray cast iron base. The piston of the machine is also made of gray cast iron round material. The cylinder is made from a hydraulic cylinder tube which is already finished on the inside and has an excellent surface. The cylinder head and cooling jacket are made of aluminum to guarantee good heat dissipation. The flywheels are made of cast steel in the usual Bengs model construction quality. Most attachments and machine frames are made of brass. All necessary materials for the construction of the internal combustion engine "Karl" Screws, springs and ignition parts are included in the kit. All milling parts are prepared so that they are only deburred and possibly drilled. Construction of the Hit & Miss engine requires a lathe, a drilling machine and a gas burner for soldering. Furthermore, the following hand tools still needed (taps M2, M3, M4, M8x0,75, M10x1 Dies M2, M3, M4, M8x0,75, M10x1 Reamer 3H7, 4H7 6H7, 10H7) files and a set of drill bits needed. Only one side cutter requires a stripping plier and a soldering iron for wiring the ignition. If you want to find out in advance what steps need to be performed in the production of this engine that you see in our Bengs model magazine the building report from the 4-stroke stationary engine "Karl" on. On this page you can see the illustrated report how the station motor is edited.Included in the delivery are: Finished CNC milled milling parts Raw material for the turned parts Raw casting for the flywheels Raw casting for the belt pulley Two wooden runners All required screws, nuts, sprockets and ball bearings Drawings Internal combustion engine "Karl" (24 sheets) and english construction manual (11 sheets) Wooden box for ignition Ignition coil, condenser, spark plug and breakers All required cables for the ignition Power supply for the ignition Hit & Miss regulation The Hit & Miss regulation can limit the engine's maximum speed. When the engine has reached an excessive speed, a slider prevents the exhaust valve from closing. Thus the motor runs freely. No compression in the cylinder chamber can occur and the engine does not suck up any fresh gasoline or ignite the air fuel mixture. The Hit & Miss regulationt is mentioned in the German suspension rules. The intermittent control system was used from 1890 to 1940 mainly in the USA by different companies with internal combustion engines.

The 4-cylinder in-line engine "Marc" is based on a historical model. The model was a four-cylinder in-line engine that was manufactured by the American company Holt at the beginning of the 20th century. This engine was mainly used in bulldozers and tracked tractors. This engine was available in 2, 4 and 6 cylinder versions. In 1925, the Holt company became the Caterpillar company, which still exists today. The engine does not consist of a cast engine block, as was usual later, but still has individual cylinders. This design is visually very appealing and makes it possible to offer the engine as a material kit. Speed control via centrifugal governor Carburetor with adjustable throttle valve Cooling circuit with cooling water pump Cooler with fan With the 4-cylinder in-line engine "Marc" material kit, you can build a fully functional combustion engine yourself. The material kit contains all the necessary parts including the ignition. The engine has a functioning speed control using a centrifugal governor. A cooling water pump pumps water through a radiator, where the cooling water is cooled down by the fan and then flows back into the cylinder jacket. The engine is equipped with glow plugs. The glow plugs come with four Batteries operated. All components for producing the ignition are included (batteries are not included).Dimensions of the model combustion engine 'Marc': Height with wooden base: 310mm Length: 450mm Width: 180mm Piston diameter: 23mm Flywheel D.: 1x140mm 1x80mm Speed speed: 200-1000 rpm Weight: 9.1kg The engine stands on two oak runners. The engine block is screwed together from milled parts. The base plate for the cylinders is made of steel, the bearing blocks that hold the crankshaft are made of aluminum. This unit is then provided with finished lasered and folded sheets. The cylinder sleeves are made of brass, the inside diameter no longer needs to be machined. The cylinder head and cylinder are included as material sections and must be machined on the lathe. The remaining components are mainly made of brass. The crankshaft is made from individual segments. No milling machine is required to produce the crankshaft either. It can be built entirely on the lathe. Further information can be found in our build report for the four-cylinder engine. The two flywheels are available in the quality we know. Both flywheels are made of cast steel. The speed of this model is controlled via the carburettor. You can regulate the amount of air supplied. The carburettor is connected to a centrifugal governor via a linkage. This means you can set the engine to a desired speed, which is then maintained under load using the centrifugal governor. Here you will find an extensive construction report of the four-cylinder internal combustion engine Marc< /a> with lots of pictures and additional texts. Here you will find extensive assembly instructions for the combustion engine On the page you can see how you have to put all the manufactured parts together. Here you will find extensive instructions for the Commissioning and operation of the four-cylinder engine Marc All materials required to build the internal combustion engine "Marc" screws, nuts, springs and ignition parts are included in the kit. All milled parts are prepared so that they only need to be deburred and possibly drilled. To build the vertical stationary motor, a lathe, a drill and a gas burner for soft soldering are required. The following hand tools are also required (tap M2, M3, M4, M5, 6x0.75, M8x0.75, M10x1 die M2, M3, M5, M6x0.75, M8x0.75, M10x1 reamer 4H7 6H7, 8H7, 10H7) Files and a drill set are necessary. All you need to wire the ignition is a pair of side cutters, wire strippers and a soldering iron. If you would like to find out in advance what steps you will take to make this internal combustion enginehave to be carried out, take a look at the construction report of the 4 cylinder combustion engine "Marc" material kit in our Bengs model building magazine. On this page you can see the illustrated report on how the stationary motor material set is processed.The scope of delivery includes: finished CNC milled milled parts Raw material for the turned parts Rough casting part for the flywheels 2 runners made of oak wood All required screws, nuts, gears and seals Drawings of the internal combustion engine "Marc" (36 sheets) and construction instructions (8 sheets) Glow plugs, cables, cable clamps, battery compartment for the ignition Laser parts for stands and fairings

The Jonas vertical combustion engine was based on the appearance of the early diesel engines that were created at the beginning of the 20th century. A frame that has the shape of an A was typical. In addition, the early diesel engines were mostly long-stroke engines, which resulted in a slim and tall design. The overhead camshaft, which was driven by a long vertical shaft, was also typical. Back then, as now in our model, the speed was controlled via a centrifugal governor mounted on top of the vertical shaft. Our combustion engine runs on gasoline, but operation on diesel is not possible. Speed control via centrifugal governor Carburetor with adjustable throttle valve Cooling circuit with cooling water pump Fuel pump delivery rate adjustable Ignition timing adjustment Camshaft drive via screw wheel 45° With the material kit for the water-cooled 4-stroke engine "Jonas" you can build a fully functional internal combustion engine yourself. The material kit contains all the necessary parts including the ignition. The engine has functioning speed control using a centrifugal governor. A cooling water pump pumps water through a radiator into the cylinder jacket and back again. The engine also has a fuel pump that pumps the fuel towards the carburettor into an intermediate tank. The pumping volume of the fuel pump can be adjusted as required. The breaker ignition is located in the cast base. The ignition is supplied with voltage via a 12 V 2 A power supply. The power supply is also included.Dimensions of the model combustion engine 'Jonas': Height with wooden base: 500mm Dimensions of the base plate: 350mm x 210mm Piston diameter: 25mm Flywheel D.: 200mm Speed speed: 200-600 rpm Weight: 11.8kg The machine base of the vertical stationary motor is a heavy gray cast iron base. This heavy base gives the model sufficient stability. The piston of the combustion engine is also made from gray cast iron round material. In this engine the piston also has a piston ring. The piston ring is already included in the kit. A hydraulic cylinder tube is used as a cylinder, which is already finished on the inside and has an excellent surface. The cylinder head is made of aluminum, the cooling jacket is hollow and is flushed with cooling water via a cooling water pump. The 200mm flywheel is made of gray cast iron and can be ordered pre-machined upon request. Most of the attachments and the machine frame are made of brass.Speed control The speed of this model is controlled via the carburettor. By being able to regulate the amount of air supplied. The carburettor is connected to a centrifugal governor via a linkage. This means you can set the engine to a desired speed and this is maintained even under load using the centrifugal governor. All materials required to build the internal combustion engine "Jonas" screws, nuts, springs and ignition parts are included in the kit. All milled parts are prepared so that they only need to be deburred and possibly drilled. To build the vertical stationary motor, you need a lathe, a drill and a gas burner for soft soldering. The following hand tools are also required (tap M2, M3, M4, M6x0.75, M8x0.75, M10x1 die M2, M3, M4, M6x0.75, M8x0.75, M10x1 Reamer 3H7, 4H7 6H7, 8H7, 10H7) Files and a drill set are necessary. All you need to wire the ignition is a pair of side cutters, wire strippers and a soldering iron. If you would like to find out in advance which work steps you have to carry out when manufacturing this combustion engine, take a look at our Bengs model building magazine Construction report of the vertical stationary engine “Jonas” at. On this page you can see the illustrated report on how the stationary motor material set is processed.The scope of delivery includes: finished CNC milled milled parts Raw material for the turned parts Raw casting part for the flywheel (optionally also completely turned) Base plate birch multiplex Cylinder sleeve and

This casting set was designed on the model of a Dürkopp gas engine. The finished model has an impressive total height of 430mm and many special details. This casting set was previously marketed by Ravensburger steam models. From now on this cast kit is available from us. To build this casting set, you should already have experience in this model construction area. The flywheel with 280mm diameter requires a large and stable lathe, with a sufficiently large lining and planar disc. You also need a larger milling machine to finish the castings. This engine is a special construction, the crankshaft lies above and the piston plunges down into the cylinder. This type of motor is called the plunger motor. A cam disk is driven via two bevel gears, through which the inlet and outlet valves are actuated. The valves are not mounted in the cylinder chamber, as are customary today, but are located outside in their own valve housings. In addition, this motor is equipped with a centrifugal governor, which can be used to regulate the amount of the incoming gas. The Dürkopp immersion piston engine has been designed for operation with gas. It can be operated directly with gas from a propane bottle. Of course, this engine can also be operated with petrol. For this, however, the gas mixer must be exchanged for a carburettor. Our experience has shown that this engine runs with gas much smoother and more beautiful. We recommend operating with gas. Required tools and machinesFor the construction of the combustor, an extensive workshop, with a large lathing machine and a medium-sized stable milling machine is needed. The lathe should be able to machine a flywheel with an outer diameter of 300 mm. For machining the castings on the lathe, a planar disk should also be present. In addition, a stator drilling machine and a torch for soldering larger parts will be available. Furthermore, hand tools (taps M2, M3, M4, M6x0,75, M10x1 / cutter M2, M3, M4, M8, M6x0,75, M10x1 / reamers 3H7, 4H7, 5H7, 6H7,15H7 files, drill set) are necessary , To solder the ignition, a soldering iron is required for this model. We have prepared for you an extensive construction report of the Dürkopp gas engine. The building report is subdivided into subassemblies and is designed to assist you in the manufacture of the engine. Furthermore, you can see in the building report whether your machine park is of sufficient size. Baubericht Dürkopp Tauchkolben Gasmotor   Dimensions of the finished engine: Height: 430mm Thrust Gusssockel (cylinder head): 195mm Diameter of flywheel: 290mm Diameter of piston: 40mm Piston stroke: 60mm Weight with wooden base: 20kg You have the choice between 4 different variants. You have the choice between different sets of gasmotor Dürkopp. With Set 2 you get the drawing, the cast parts and some special parts. If you order Set 4 you will get all the components and screws needed to build the engine. With Set 4 everything from the piston to the power supply is there and you do not have to leave the hobby workshop until the completion of the engine. Dürkopp vertical Gas engine Set 1 / Construction Plan Construction plan Dürkopp Gasmotor consisting of drawings (3 sheets DIN A3, 22 sheets DIN A4   Dürkopp vertical Gas engine Set 2 / Construction Plan, cast parts Construction plan Dürkopp Gasmotor consisting of drawings (3 sheets DIN A3, 22 sheets DIN A4) Cast iron (1x flywheel 280mm, 1x cylinder head with foot, 1x cylinder jacket, 1x crankshaft bearing block, 2x bearing cover, 2x valve housing,) Special parts 40mm cylinder tube, piston rings, bevel gears   Dürkopp vertical Gas engine Set 3 / Construction Plan, cast parts, screws and ignition Construction plan Dürkopp Gasmotor consisting of drawings (3 sheets DIN A3, 22 sheets DIN A4) Cast iron (1x flywheel 280mm, 1x cylinder head with foot, 1x cylinder jacket, 1x crankshaft bearing block, 2x bearing cover, 2x valve housing) Special parts Cylinder tube, piston rings, bevel gears Screws, springs, seals and all parts for ignition   Dürkopp vertical Gas engine Set 4 / Construction Plan, cast parts, screws and ignition, round material Construction plan Dürkopp Gasmotor consisting of drawings (3 sheets DIN A3, 22 sheets DIN A4) Cast iron (1x flywheel 280mm, 1x cylinder head with foot, 1x cylinder jacket, 1x crankshaft bearing block, 2x bearing cover, 2x valve housing) Special parts Cylinder tube, piston rings, bevel gears Screws, springs, seals and all parts for ignition Brass, aluminum, gunmetal and silver steel for all turning parts

With this set of cast parts you have the opportunity to build a prototypical model engine of the type that was used as a large engine at the beginning of the last century (e.g. to generate electricity in factories). The large piston stroke and large bore enable a speed of less than 130 rpm. The quiet and slow running of the engine arouses true enthusiasm among connoisseurs. The valves are controlled via a timing chain that drives the camshaft. The dimensions of the gas engine are already clear from the weight. It weighs around 50 kg. With this engine, a true-to-life power plant can be built to generate electricity. This set of castings was previously sold by the Ravensburger Dampfmodelle company. This casting set, drawing and spare parts are now available from us in the Bengs Modellbau online shop. We supply most of the special parts needed to build the engine. You can use the components we offer as ignition. Here you can find the parts for the ignition (Ignition coil , Interrupter, Kondensator, Spark plug).  The castings are molded and cast by hand in a small foundry in Germany. Most of the castings are made of GG25, the cylinder head is delivered in cast aluminum. Due to the large dimensions of this engine, you should have an excellently equipped workshop with a large lathe and a large milling machine. Here you will find a detailed construction report from the Otto gas engine vertical in our magazine.   Technical data Vertical gas engine Otto V Power: approx. 0.7/0.5 HP/kW Speed speed: approx. 130 rpm Bore/stroke: 50/80 mm Displacement: 150 cc System: Otto Ignition: battery ignition Fuel: Gas Lubrication: Drip oiler Flywheel Ø approx. 350 mm Flywheel width: approx. 42 mm Shaft width: approx. 300 mm Motor height: approx. 600 mm Flywheel: approx. 20 kg weight Scope of delivery: cast parts Base / GG25 Base / GG25 Cylinder / GG25 Bearing block / GG25 Bearing cap / GG25 2x flywheel / GG25 Cylinder head / cast aluminum Includes small parts Drawing  Sprocket 1 / steel Sprocket 2 / steel Liner for cylinder  2x piston rings 2x valve springs Steel roller chain Chain lock

The Stirling engine "The Great Laura" is similar in design to a horizontal plank hot air engine from 1910. Like every Stirling engine, this horizontal, air-cooled heat engine has two cylinders with pistons, the displacement cylinder and the working cylinder. The working cylinder is made of steel, the displacement cylinder is made of aluminum with a 60mm diameter due to better thermal conductivity. In addition, the displacement cylinder is equipped with cooling fins to ensure the machine runs for as long as possible. Like its historical model, the hot air engine has a flywheel and a pulley. The modelThe Stirling engine As you can tell from the name, “The Big Laura” is a large version of our very successful “Laura” Stirling engine kit. The size of this model brings with it some advantages. Due to its large surface area, the Stirling engine can dissipate heat better and therefore run longer. The tank of the Stirling engine "The Big Laura" is extra large. A tank full of denatured alcohol lasts 8-10 hours depending on the size of the flame. In addition, significantly lower speeds are possible with this large Stirling engine than with small model Stirling engines. But even high speeds are no problem for the model. The speed of this hot air motor can be controlled using an adjusting wheel. The burner is firmly connected to the model and the base plate. A 140mm flywheel and a pulley in our well-known cast steel quality run on the drive shaft. The working cylinder consists of a hydraulic cylinder tube and no longer needs to be processed on the inside. The included oak base plate is also pre-milled.  The blueprint and construction instructions included with the Stirling engine are very extensive, detailed and easy to understand. For the model maker who has always wanted to build a large Stirling engine himself, the Stirling engine "The Big Laura" is a well-suited model. Dimensions of the model Stirling engine Base plate: 255mm x 120mm Flywheel: 140mm Pulley: 56mm Total height: 120mm Working piston: 30mm Displacer piston: 35mm Overall length: 410mm < span style="letter-spacing:0px;">Included in the scope of delivery of the material kit Stirling engine "The Great Laura" are Milled wooden base plate Finishedmilled milled parts Brass, steel, stainless steel and silver steel Raw material for the turned parts Cylinder sleeve made of hydraulic cylinder tube  Flywheel and pulley made of cast steelAll required screws, nuts, gaskets, grub screws and wick  Construction plan model Stirling "The big Laura" drawings (14 sheets) and construction instructions (9 sheets) All materials, screws and accessories required to build the Stirling engine "The Great Laura" are included in the kit. All milled parts are prepared to such an extent that they only need to be deburred and possibly drilled. To build the Stirling you will need a medium-sized lathe, a column drill and a gas burner for brazing and soft soldering. There are also hand tools that should be in every "model making machine shop" (tap M2, M3, M4, M8x0.75, M10x1 die M3, M8x0.75, M10x1 reamer 3H7, 4H7, 5H7, 8H7, 10H7) files and a drill set is necessary. You can find a detailed construction report for this model in our Bengs model building magazine. In the Construction report of the Stirling engine “The Great Laura” you will find lots of pictures and explanatory texts. This means you can find out in advance about the work that needs to be done. But the Stirling engine construction report can also help you during construction.

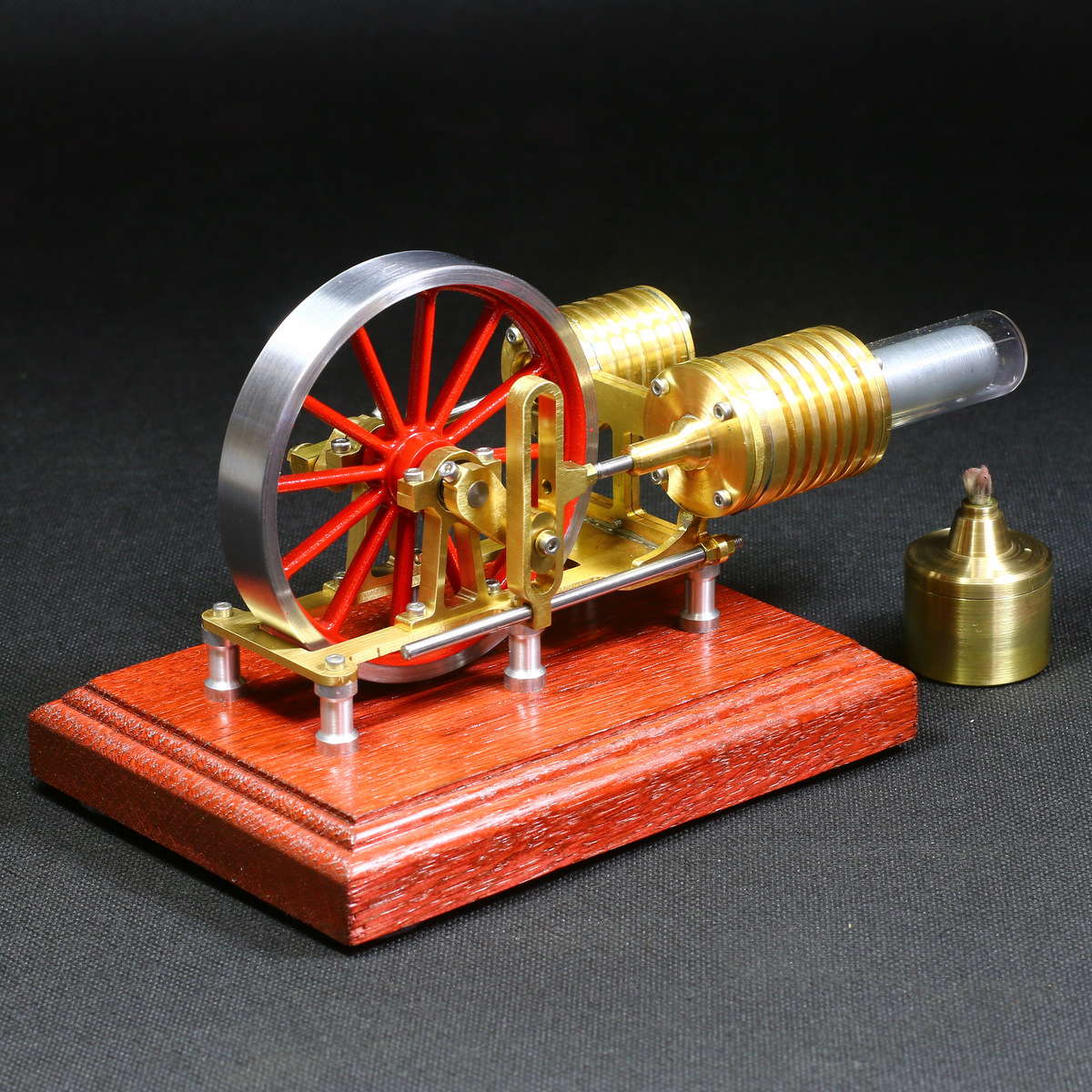

The Stirling engine 'Laura' has parallel cylinders; this type is called gamma type. The engine is a visually very appealing showcase and demonstration model which can be put into operation at any time and anywhere. The Stirling engine 'Laura' material kit is constructed according to the well-known BENGS model building principle. All milled parts are prepared to such an extent that they only need to be deburred and possibly drilled. The turned parts are unprocessed. The flywheel is pre-turned and milled to such an extent that it can also be finished on a small lathe.The scope of delivery of the Stirling engine Laura material kit includes: Finished milled parts Raw material for the turned parts very clean 80mm cast flywheel Milled oak base plate All required screws, nuts, Duran glass tubes, Ball bearings and O-rings Construction plan Stirling engine Laura drawings (7 sheets) and construction instructions (3 sheets) Dimensions Stirling engine Laura: Base plate: 140mm x 100mm Flywheel: 80mm Total height: 105mm Working piston: 10mm Displacer piston: 13mm To build the Stirling engine "Laura" material set, you will need a small lathe, a small drill and a gas burner for soldering small parts. Otherwise there are hand tools that should be in every “steam engine workshop” (Tap drill M2, M3, cutting die M2 and M3, reamer 3H7, 6H7, 10H7, files, drill set) are necessary.

Our model Rufus is a model of a thermoacoustic Stirling (Lamina Flow Stirling). The construction of the thermoacoustic Stirling engine is very simple. In Rufus, the working piston is moved by a thermoacoustic effect. A thermoacoustic effect occurs when air is heated in a tube and caused to vibrate using an exciter source (e.g. steel wool) so that a standing wave is formed in the tube (Rijke tube). As with the Stirling engine, there is also the cycle of expanding and contracting air (gas). A comparison with the Stirling engine is also possible in that it is a closed system, although the thermoacoustic Stirling does not use a displacer piston. This is what makes the design of the engine so simple. The thermoacoustic Stirling engine Rufus runs almost silently. It is heated with a small burner filled with spirit. The working piston is made of graphite and does not need to be lubricated. The Stirling engine 'Rufus' material kit is constructed according to the well-known BENGS model building principle. All milled parts are prepared to such an extent that they only need to be deburred and possibly drilled. The turned parts are unprocessed. The flywheel can also be made on a small lathe. The scope of delivery includes: Finished milled parts Raw material for the turned parts and graphite pistons Raw material flywheel (aluminum) Milled wooden base plate made of oak Material for the burner All required screws, nuts, glass tubes, fiberglass wick, ball bearings and O-rings Construction plan Stirling engine Rufus drawings (6 sheets) and construction instructions (2 sheets) Dimensions Thermoacoustic Stirling engine Rufus Base plate: 170mm x 100mm Flywheel: 60mm Total height: 88mm Total length: 255mm Working piston (graphite): 18mm To build the thermoacoustic Stirling engine Rufus material set, you will need a small lathe (min. Opti D180 x 300), a small drill and a gas burner for soft soldering. Otherwise, hand tools, which should be in every “steam engine workshop”, are required (M2 tap, 3H7, 6H7 reamer, files, drill set, screw locking adhesive).

Valve-controlled steam engines are certainly among the most impressive machines. Since the valve control is attached to the outside of the cylinder, the process can be observed very well. The centrifugal governor increases the number of moving parts even further. A slow-running valve-controlled steam engine with a centrifugal governor is a real treat for every model maker.With this material kit you get, as usual, all the parts you need to make this beautiful valve-controlled steam engine. All milled parts are already milled. All turned parts are included in the kit as raw material and must be made by you according to the drawing that is also included. A valve-controlled steam engine has a particularly impressive control system. The distribution of the steam is not controlled by a compact valve but by 4 individual valves. Each of the valves has its own eccentric. In our machine, the centrifugal governor controls the speed by accessing the valve rods and limiting their travel. The model With this material kit for the valve-controlled steam engine ‘Isabel’, you can build a very complex valve-controlled steam engine. The kit has a stable machine base made of sheet steel. The majority of the engine parts are made of brass. The 4 eccentrics of the steam engine are driven by 2 brass bevelled wheels. The centrifugal governor is driven by two diagonally toothed brass gear wheels. It can be used to regulate the speed of the steam engine. The cylinder of the valve-controlled steam engine is made of brass, the piston and plain bearing bushes are made of bronze. The 140mm flywheel is made from a very cleanly cast steel casting. The base plate is laser-cut from 1.5 mm sheet steel that can be easily bent by hand. All other parts are made of brass, as proven in steam modelling. The following is required for construction:To build the horizontal steam engine you will need a lathe, a small drill and a gas burner for soft soldering. Furthermore, hand tools are required, which should be in every "steam engine workshop" (tap M2, M3, M5x0.5, M6x0.75, M10x1 / dies M2, M3, M5x0.5, M6x0.75, M10x1 / reamers 3H7, 4H7, 8H7, / files, drill set). You can find more information about building this steam engine in our model building magazine. In our magazine you will find a construction report of the horizontal valve-controlled steam engine "Isabel" with many pictures and explanatory texts. This means you can find out about the construction in advance and also find suggestions and support during the construction phase. The scope of delivery includes finished CNC milled parts Raw material for the turned parts Raw cast part for the flywheel Laser cut for base plate All required screws, model building nuts and springs 1 set of bevel gears, 1 set of helical gears Drawings of valve-controlled steam engine “Isabel” (18 sheets) and construction instructions (7 sheets) Dimensions of the model building steam engine “Isabel”: Height with base plate: 170mm Length with base plate: 250mm Width with base plate: 420mm Piston diameter: 20mm Flywheel diameter: 140mm Stroke: 36 mm Weight of the finished machine: 4.4 kilos

The half-balancing steam engine is a further development of the actual balancing steam engine. It was developed to reduce the space required by the steam engine while maintaining the same performance. The model has a 140 mm flywheel and a total height including the base plate of 190 mm. In this model, the balancing beam consists of two brass parts that have already been machined on the CNC milling machine. All assemblies are mounted on a base plate that has already been engraved. The flywheel is included in the material kit as a cleanly cast raw part. All materials, screws and accessories required to build the steam engine are included in the kit. All milled parts are prepared to such an extent that they only need to be deburred and possibly drilled. To build the steam engine, you need a lathe, a small drill and a gas burner for soldering larger parts. You also need hand tools, which should be in every “steam engine workshop”, taps M2, M3, M8x0.75, dies M2, M3, M8x0.75, reamer 3H7, 4H7, 6H7, 8H7, files and a drill set. p> Dimensions of half-balanced steam engine Grasshopper with base plate Length: 240mm Width: 110mm Height: 190mm Flywheel D.: 140mm Piston D.: 16mm Stroke: 27mm Included in delivery are: finished milled parts Raw material for the turned parts Raw casting for the flywheels Material & Valve ball for producing a feed water pump Engraved aluminum base plate All required screws, nuts and ball bearings Drawings 21 sheets) and construction instructions (5 sheets) A detailed Construction report of the half-balanced steam engine can be found in our Bengs model building magazine. On the page you will find many pictures and texts with details and suggestions on how the components of the steam engine can be manufactured.

The Leni steam engine is a model of a standing steam engine with Stephenson reversal. With its 80 mm flywheel and a total height including the base plate of 185 mm, the model is a good size so that it can also be manufactured in smaller model workshops. This type of steam engine was built from around 1840 until the 20th century. This standing design often found its place in small craft businesses where it powered various tools or generators. The direction of rotation of the steam engine can be changed at any time using the Stephenson reversal. The construction plan and instructions for this standing steam engine are very extensive, detailed and easy to understand. This makes the kit not only suitable for model building professionals but also for newcomers to technical model building. The construction instructions go into the production of each component. In addition to the detailed printed instructions, you will also find a comprehensive construction report of the Leni steam engine in our Bengs model building magazine. For the model builder who has always wanted to build a steam engine with Stephenson reversing, the standing steam engine “Leni” is a good choice. But even advanced model makers will enjoy this visually beautiful standing steam engine model. The machine is suitable for both the display case and as the centerpiece of a model steam system. The Leni model steam engine is mainly made of brass, the piston is made of gunmetal. Piston rods and slides are made of stainless steel. The flywheel is a very precise cast steel where the outer diameter only needs to be turned slightly once. Included in the Leni steam engine material kit Milled oak base plate Finished milled parts Brass, bronze, stainless steel and silver steel raw material for the turned parts Cast steel flywheel 80mm All required screws, nuts and grub screws Construction plan model steam engine "Leni" drawings (14 sheets) and construction instructions (8 sheets) Dimensions of the steam engine Lenni Height with base plate: 185mm Length with base plate: 140mm Width with base plate: 100mm Piston diameter: 15mm Piston stroke: 18mm Flywheel D.: 80mm Weight: 900g. Some tools are required to build the “Leni” steam engine material kit. A small lathe and a small drill are particularly important. A gas burner is required for soft soldering, for example the small gas soldering tool CFH Diamant M50 is suitable. M2 and M3 taps and M2 and M3 cutting dies are also needed. You also need reamers 3H7, 4H7, 6H7, screw glue, files and a drill set. p> A detailed Construction report on the steam engine “Leni” can be found in our Bengs model building magazine. On the page you will find many pictures and texts with details and suggestions on how the components of the steam engine can be manufactured.

The 2 cylinder steam engine Tobias with Stephenson reversing is an impressive model of a standing 2 cylinder steam engine, as it often was used in steam ships or stationary systems. The Stephenson reversing system can be used to reverse the direction of rotation of the machine by turning the handwheel. The model already runs from 0.5bar. At low speeds, the impressive movements of the steam engine can be observed very well. The movement sequences of the Stephenson control system are particularly impressive. This model is not suitable for entry into steam model construction. Because of the very complex structure, you should first learn the basic principles of the steam engine with a slightly simpler model. As with all material assemblies, all milling parts are finished milled with this kit. The rotating parts are included as a material section and still have to be machined by you. The largest rotating part in the model steam engine Tobias is the flywheel with 50mm raw diameter. Dimensions of the 2 cylinder steam engine Tobias Length as above. : 152mm Width above. : 80mm Height above. : 160mm Flywheel diameter: 48mm Stroke: 18mm Piston diameter: 15mm Cylinders: 2 Weight: 1700g For the construction of the 2 cylinder steam engine Tobias, a small turning machine, a small drilling machine, as well as a gas burner for the soldering of large parts are needed. Otherwise there is still a hand tool which should be located in every "steam engine workshop". Taps of size M2, M3, M5, M5x0.5 and fine thread drill M6x0,75 are required. In addition, cutters M2, M3, M5x0.5 and M6x0.75 and reamers 3H7, 4H7, 6H7, 8H7 and 10H7 are required. Files and a drill set in 0.1mm gradation should also be present. The scope of delivery includes: finished milled parts raw material for the turned parts cast round material for the flywheel flat-milled aluminum cast part for the machine base all required model building screws, model building nuts and ball bearings drawings 2 cylinder steam engine Tobias (11 sheets DIN A4) and assembly instructions (7 sheets DIN A4)

Our eccentric press is a replica of a machine tool that was used many years ago in many craft and craft industries. industrial companies could be seen. Eccentric presses were previously used for punching holes and embossing work. Originally the presses were driven via a transmission. Later  Many of the eccentric presses were subsequently equipped with an external electric motor. The actual belt drive was retained. Our model is a replica of such a press. It is equipped with a punching tool with a diameter of 5.5 mm, which corresponds exactly to the diameter of an office hole punch. The press must be powered by either a steam engine or a small electric motor. The best way to do this is to use a small round belt that acts directly on the large flywheel. The flywheel and gearbox are constantly running, but the tool is not yet moving. The model has a foot lever that operates a clutch that allows exactly one work cycle. When the foot pedal is pressed, the clutch engages and the tool moves downwards. The stamp punches the hole and then returns to its original position. Here the clutch is automatically disengaged. Most of the model's components are made of brass. The large machine base is laser cut from steel. All axles are made of silver steel. All milled parts are included in the kit ready-machined. All turned parts are included in the delivery as raw material. Of course, as with all other Bengs model building material kits, you will also receive all the screws, nuts and springs you need. To the construction  A small lathe and a column drill are required, as well as a gas burner for soft soldering. The following should also be available: Tap M2, M3, Dies M2, M3 Reamer 5H7 files and a drill set. Otherwise, hand tools, which should be in every “technical model making workshop”, are necessary.   Here you will find an extensive construction report for the Nils eccentric press material kit with lots of pictures and tips. Scope of delivery: eccentric press Nils drive model Finished milled parts Raw material for the turned parts all required screws, nuts and grub screws Eccentric press construction plan drawings (8 sheets) and construction instructions (4 sheets) Dimensions of eccentric press material kit Height: 155mm Width: 80mm Depth: 110mm Flywheel: 80mm In this video the eccentric press is powered by our generator/motor. You can find thegenerator kit here. The generator can be used to generate electricity, when connected to a power source it works like an electric motor. You can find the matchinground belt here.

The generator can be driven via a belt by a flame eater, Stirling engine, steam engine or an internal combustion engine will be around Convert kinetic energy into electrical energy. If desired, you can also use this dynamo as a historical electric motor by simply supplying it with 12 volts. The model is based on a historical generator. The open design means you can see very well into the generator. The collector and the brusches are also outside and are very clearly visible. Of course, this generator has the obligatory eye screw in the upper part of the housing. The generator also stands on 2 tensioning rails to optimally adjust the belt tension. The complete dynamo can be moved 10 mm on the tensioning rails The material kit is mainly made of brass. The motor housing is made of aluminum. The armature with the winding and the magnets are taken from a standard electric motor included in the kit. The electric motor will be dismantled according to your instructions and some of the components will be reinstalled. Comprehensive construction instructions are included for the further steps in building the generator. In addition, you will find a detailed Construction report with lots of pictures and explanations. The generator runs very smoothly and has little resistance, making it also suitable for smaller machines with little power such as flame eaters. Accordingly, the power output is not particularly high. However, it is enough to light up a small 6 V light bulb or to operate several LEDs. All milled parts are already milled and may still need to be drilled, all turned parts are included in the kit as raw material. All required screws, nuts and the electric motor are also included in the scope of delivery. Scope of delivery generator material kit Finished milled parts Raw material for the turned parts all required screws, nuts and grub screws Construction plan generator drawings (4 sheets) and construction instructions (1 sheet) Electric motor Dimensions of generator material kit Height: 55mm Length with tension rails: 135mm Clamping rails clamping path: 10mm Width: 68mm Pulley: 10mm/16mm Performance data of the electric motor used Operating voltage: 12 V- Current consumption at maximum power: 0.56 A Power max. 2.71 W Torque: 9.95 mNm Speed: 2603 rpm

This crane is a replica based on a real harbor crane from England. The model of this crane is located on the edge of a canal in Driffield, East Yorkshire, Great Britain. This crane used to be used to lift goods from ships and even entire boats out of the water. The original and model have a gear with which the chain could be moved either in rapid motion or slowly with a lot of force. The crane has a brake so that the chain spindle does not unroll itself when a load is hanging on the hook. The brake has an integrated freewheel so that the braking force only works in one direction of rotation. When you crank a load up you don't have to overcome the braking force. The crane is rotated via a second spindle with a worm wheel. All milled parts in the model are made of brass. The intermediate columns and the rotating columns are supplied as free-cutting steel. The brake drum and idler pulley are made of gray cast iron. A round rod made of oak is included for the boom. The model is fully functional when assembled and can lift and hold loads of up to 250 g. If the base of the crane were to be enlarged even larger loads would not be a problem. The scale of the harbor crane is approximately 1:20.  All milled parts are included in the kit ready-made. All turned parts are included in the delivery as raw material. Of course, as with all other Bengs model building material kits, you will also receive all the necessary screws, nuts and a suitable chain. The base made of 4 mm sheet steel is included as a laser-cut sheet metal part. To the construction  A small lathe and a column drill are required, as well as a gas burner for soft soldering. The following should also be available: M2, M3, M4 taps, M3 dies, 4H7, 6H7, 8H7 reamers, files and a drill set. Otherwise, hand tools, which should be in every “technical model making workshop”, are necessary.   Here you will find a comprehensive construction report with lots of pictures for the Hercules harbor crane material kit Scope of delivery harbor crane material kit Finished milled parts Raw material for the turned parts All required screws, nuts and chain Construction plan harbor crane drawings (16 sheets) and construction instructions (4 sheets) Laser part base Dimensions of harbor crane material kit Height: 260mm Length overall: 350mm Max. Lifting weight with standard base: 250g Weight: 1.1kg

With this material kit you can make a blowtorch yourself. The blowtorch is model size and has a total height of 125 mm. The blowtorch is mostly made of brass. The handle and the handwheel for adjusting the flame size are made from the included oak wood. The finished blowtorch also works in the model just like an original blowtorch. You can use the torch for brazing, soft soldering, paint stripping and for operating glow tube igniter engines. Of course, this beautiful blowtorch is also suitable for the model making display case just to look at. A blowtorch is a gas burner that was originally powered by gasoline or spirit. The blowtorch is not only used for soldering but also as a heating lamp for preheating glow-head engines. An alcohol-powered blowtorch does not start by itself but must be preheated. Due to the complicated handling, spirit and gasoline-powered blowtorches were replaced in the 1970s by blowtorches with butane as a fuel. The alcohol-powered blowtorch remains a fascinating tool to this day.  All milled parts and all stamped parts (tank base and tank cap) are included in the kit ready-made. All turned parts are included in the delivery as raw material. Of course, as with all other Bengs model building material kits, you will also receive all the necessary sealing elements, screws and fiberglass wicks. A 0.38 mm drill is required to build this kit. The drill is also included in the kit. Scope of delivery blowtorch material kit Finished milled parts Finished embossed base and lid for the tank Raw material for the turned parts All required screws, seals and grub screws Construction plan blowtorch drawings (3 sheets) and construction instructions (1 sheet) 1x drill 0.38mm  Dimensions of blowtorch material kit Height: 125mm Length overall: 135mm Diameter tank: 50mm Fuel: spirit (not included) Here you can access a detailed Blowtorch construction report in our magazine.

The finger engine Empire has been specially designed by us so that the material kit can be worked, assembled and painted in less than 6 hours. Therefore, the pedal machine is very good if you want to give a close relative, a good friend or a good model builder a model you have built. Of course, the "Empire" can also build for themselves. The "Empire" finger engine is a great model for the desk of every technology fan. By moving a finger up and down, we press the pedal and bring the machine to life. The machine is held in motion by actuating the drive pedal. The constant actuation of the finger pedal has a very calming effect on the user. In addition, we recommend using the pedal machine during long telephone conversations to increase the well-being (guess of the designer). The finger engine is held in the Art Deco style of the 1920s. The finger engine is mounted on a Jatoba base plate The skin wave is ball bearing. Most components of the Empire are made of brass. The flywheel is made of cast steel. Scope of delivery finger engine "Empire" Material kit Machined wooden base plate Finished milled parts Raw material for the turned parts Very clean 80mm cast flywheel All required screws, ball bearings and maggot screws Planter pedal machine "Empire" Drawings (3 sheets) and construction manual (1 sheet) Dimensions Pedal machine "Empire" Material set Height with base plate: 130mm Width with base plate: 135mm Flywheel D .: 80mm Only a few tools are required to build the "Emipre" foot pedal. A small turning machine and a small drill are perfectly adequate. In addition, a gas burner should be provided for softening large parts. M3 and M4 taps and M3 and M4 cutters are also needed. Furthermore, reamers 4H7, 5H7, 6H7 and 10H7, file and a drill set are necessary.

Are you looking for a gift for an enthusiastic model building enthusiast, but don't know what they need? No problem, at this point you can purchase a Bengs model building voucher. Simply select the amount you want, the amount is equal to the euro value of the voucher. Proceed to checkout and we will then send you a beautifully designed postcard-sized voucher by post. There is a voucher code on this voucher that you can use to order from us both in the online shop and by telephone.
